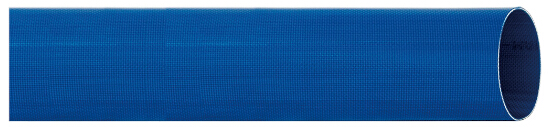

Plastic coated hose

Taking the high strength synthetic fiber as skeleton material, internal and external coating polyvinyl chloride. Corrosion resistance, no leakage, small flow resistance, soft pipe body lightweight, high quality and inexpensive, wide range of application, and can be widely used in industry, agriculture and other industrywater operation.

内径I.D.

工作压力(W.P)
(MPa)

最小爆破压力 (B.P.)
(MPa)

长度
Length
(m)

颜色
color

规格specification

公称尺寸(mm)
Nominal size(mm)

25

25.0

0.2~0.8

0.2~0.8

15~100

蓝色blue

绿色green

红色red

40

38.0

50

51.0

65

63.5

80

76.0

100

102.0

125

127.0

150

152.0

200

203.5

250

254.0

300

305.0

Application:  industrials, Agriculture, Construction, shipping
Length: 100m,  specific length upon customer’s request
Temperature range: -30℃~70℃
