Standard as per GB6246-2014 ¨C FIRE HOSE, Q/320684 ZHX008 LINED FIRE HOSE, Q/320684ZHZ010 LINED DOUBLE JACKET FIRE HOSE, Other specific requirements on customer,s request.

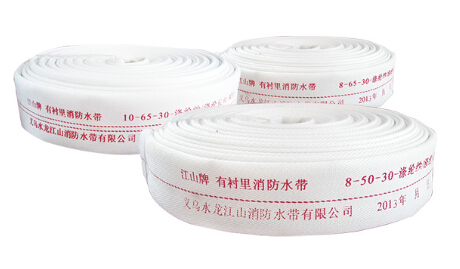

Single jacket nature rubber lining fire hose has good quality to abrasive-resistance, It is widely used in many areas
|
I.D. |
W.P
£¨MPa£© |
B.P.
£¨MPa£© |
|
specification |
Nominal size(mm) |
|
25 |
25.0 |
0.8-1.7 |
2.4-5.1 |
|
40 |
38.0 |
0.8-1.7 |
2.4-5.1 |
|
50 |
51.0 |
0.8-1.7 |
2.4-5.1 |
|
65 |
63.5 |
0.8-1.7 |
2.4-5.1 |
|
80 |
76.0 |
0.8-1.7 |
2.4-5.1 |
|
90 |
89.0 |
0.8-1.7 |
2.4-5.1 |
|
100 |
102.0 |
0.8-1.3 |
2.4-3.9 |

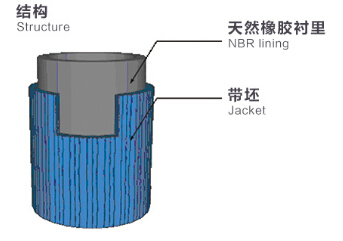

structure:
NBR lining / Jacket
Jacket Warp: Polyester filaments or spun yarn, weft: Polyester filaments:
Weaving method: Plain or Twill
Lining Material: Natural Rubber
Application:,Fire cabinet,,industrials, Agriculture, Construction, shipping
standard color: white, lining color: red or Black
Length: 20m,25m,40m, specific length upon customer¡¯s request
Temperature range: £40¡æ~70¡æ
